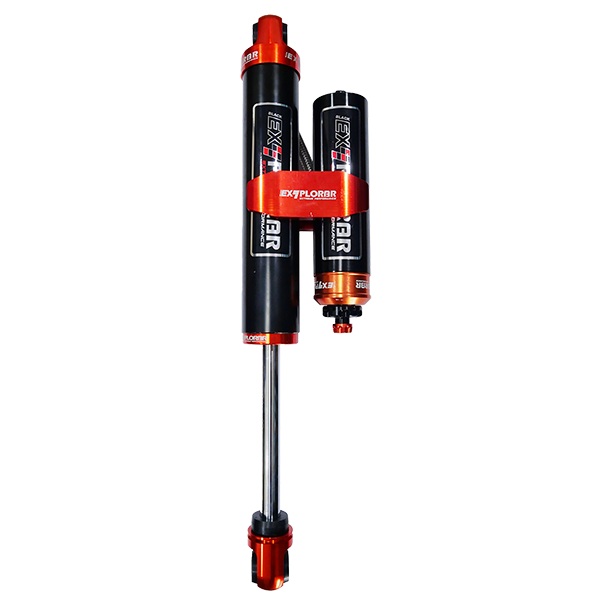

RIDE 2.5 SERIES
CATEGORY : MONOTUBE 2.5 SUB-TANK/PIGGY BACK
SKU : RBH-8-XX
SPEC
PRODUCT NAME
RIDE 2.5 SERIES
CATEGORY
MONOTUBE 2.5 SUB-TANK/PIGGY BACK
SKU
RBH-8-XX
FEATURES
- 66 mm. Body Diameter
- Large 22 mm. Chrome Piston Rod
- 60 mm Diameter Piston
- Nitrogen Gas pressurized to 200 PSI
- Steel Outside Cylinder with Chrome Plate
- 18 Steps Damping Adjustable (High/Low Speed)
- Black Adjuster for High-Speed damping adjustment. Turning the adjuster clockwise restricts the fluid flow, resulting in a stiffer ride beneficial for drivers who prioritize speed.
- Orange Adjuster for Low-Speed damping. Turning the adjuster counter-clockwise increases the fluid flow, balancing the damping force and providing a more comfortable ride.
- Front Shock Absorbers with Spring Seat can use for Standard & Lift Application
- Rubber Dust Cover
- Mounting Bush Kit
- Coil Spring that compliments the shocks
- Upside Down/Inverted System
BENEFITS
- Can setup rebound and compression damping
- Suitable for both on-road and off-road conditions
- Optimizes shock performance
- Designed to absorb vibrations when driving
- Single valve mechanism that exerts pressure equally
- Enhanced Heat Dissipation
- Minimizes foaming
EXTENDED LENGTH
COMPRESSED LENGTH
WEIGHT
5.6 kg
CAR SUPPORT
Toyota Revo , Rocco4wd 2021+ , Isuzu D-max V-Cross 4wd 2021+ , Ford Ranger T6/T7 2021+
